| 产品名称： |

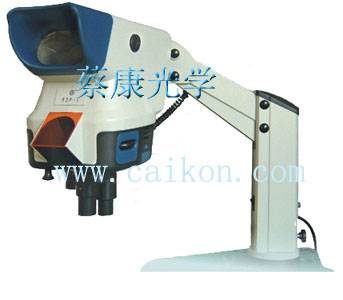

大视场金相显微镜 |
| 产品型号： |
XDP-1 |
| 产品特点： |
XDP-1大视场体视金相显微镜是上海蔡康光学仪器厂专业生产的高档体视显微镜，其成像质量高，视场宽，景深大等显著优点使得此款金相显微镜畅销国内外，深受用户好评。 |
|
大视场金相显微镜XDP-1是一种视场广阔的新型金相显微镜，同时能兼顾图像清晰，观察舒适，操作方便，立体感强的特性，广泛应用于生物解剖、电子工业、矿物研究等领域。
|
大视场金相显微镜XDP-1特点
- 融合视觉工程，设计新颖，专业生产
- 实体光学成像，提供2×. 4×. 6×. 8×. 10×. 15×的物镜，可任意转换
- 人性化设计，使长时间的观察操作者无眼疲劳感，操作更灵活自如，不受视力限制，提高工作效率
- 超长工作距离，超大的景深和视野
|
|
落地式大视场
|
技术参数/物镜
| 物镜倍率 |
工作距离(mm) |
物方线视场(mm) |
配置 |
| 2× |
208 |
68 |
● |
| 4× |
98 |
34 |
● |
| 6× |
80 |
22.7 |
● |
| 8× |
58 |
17 |
○ |
| 10× |
46 |
13.6 |
○ |
| 15× |
50 |
9.1 |
○ |
| 6×（SL） |
115 |
22.7 |
○ |
“●”为标准配置 “○”为选购配置
仪器高度1800mm
观察头部自由转动，伸展范围达850mm，方便观察超大面积物体
支架稳重，滑动自如，垂直580mm大行程带助力升降
底部万向滑轮带锁紧装置，可自由移动或固定，便于观察到最佳的位置
|
|
大视场金相显微镜XDP-1应用范围
- 电子工业：印刷电路及组成安装，产品质量控制及筛查，返工及焊接
- 精密工程、塑料业：产品质量控制及筛查微焊接，微加工，注入浇铸
- 医疗、牙科器材制造业：精加工，安装，精细修整，颜色匹配，返工检修
- 生物医学：样本制备，样本解剖，镜检操作，样本染色
- 公安系统
|
 |
|
|
大视场金相显微镜XDP-1
|
 |
|
XDP-1 is the new large viewing field microscope. If produces sharp and stereoscopic images. It is to be operated easily and comfortable. Widely applied to biological dissection, electronics, minerals.
|
Features
-
Imaging from optical entity; providing with various objectives of 2×、4×、6×、8×、10×、15× magnification. The objectives can be conveniently changed; owning humanistic operating system.
-
For the long time viewing without visual weariness, the freely and comfortably operating can be beyond the visual limit, and improve the working efficiency.
-
Possessing the super-long working distance super-large field of viewing and depth of field, so that the operator hasn’t any limited.
-
Application to electronic industry precision project plastic shop medical diagnosis and biological medicine public security system and so on.
|
|
Floor model wide-field
Microscope
|
Specification & Objective
| Magnification |
Working distance(mm) |
Viewing field for object space(mm) |
Equipment |
| 2× |
208 |
68 |
● |
| 4× |
98 |
34 |
● |
| 6× |
80 |
22.7 |
● |
| 8× |
58 |
17 |
○ |
| 10× |
46 |
13.6 |
○ |
| 15× |
50 |
9.1 |
○ |
| 6×（SL） |
115 |
22.7 |
○ |
"●" is standard equipment. "○"is optional equipment.
Height: 18OOmm
Free Viewing Body, Strength Range: 850mm, easily observe large area objective.
Stable stand, free sliding, long vertical distance is 580mm with boost up and down.
Universal block with tension adjustment in bottom, it can free to move or fix so that to observe in a good position.
|
|
Application range
- Electronics: PCB Setting, QC, Screening, Rework & Weld
- Precision project & Plastic: QC, Micro-welding, Micro-machining In jecting & Moulding
- Medical & Dentistry Equipment Manufacturing: Finish machining
Setting, Fine Dressing, Color Matching, Rework & Overhaul
- Biological medicine: Sample-Making, dissecting, Dyeing, Microscopy
- Public Security system
|
Optional LED Illumination
|
|
|
|
|
|
